DISPERFLOC

Disperfloc prevents flocculant clumping in powder and emulsion preparations.

As its name suggests, Disperfloc disperses flocculants homogenously in the preparation. This is the first step in all our preparation stations. It lets the water mix with the powder or emulsion polymer. Two types of disperser are available, depending on the amounts of flocculants used. Our type 85 Disperflocs are designed to be operated by hand, while the type 97 Disperflocs are intended for wetting the powder beneath the metering unit.
CATALOG PAGE

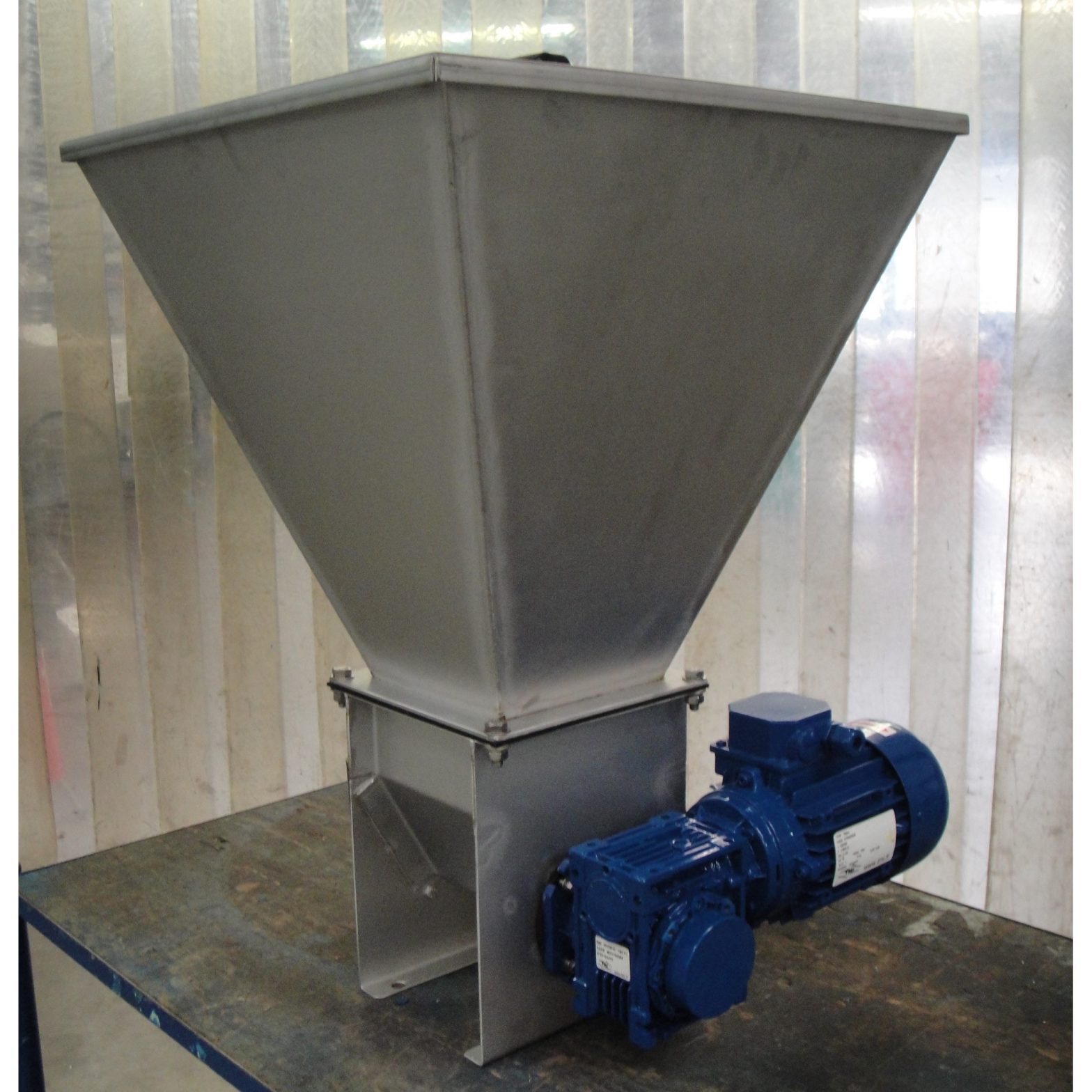

FLOCODOSE

The continuous metering of dry or slightly humid products has always been a major concern in the industry, and one that requires a specialised solution.

Our powder metering systems include a hopper that is supplied manually or by Autolift (optional), and a variable-drive feed screw beneath the hopper that ensures a precise rate of flow. TMI can also provide metering solutions for fine powders that tend to stick to the hopper walls or absorb humidity. To overcome this issue, we can supply centre-mounted hopper arch breakers that guide the powders to the metering screw, as well as vibration units.
CATALOG PAGE

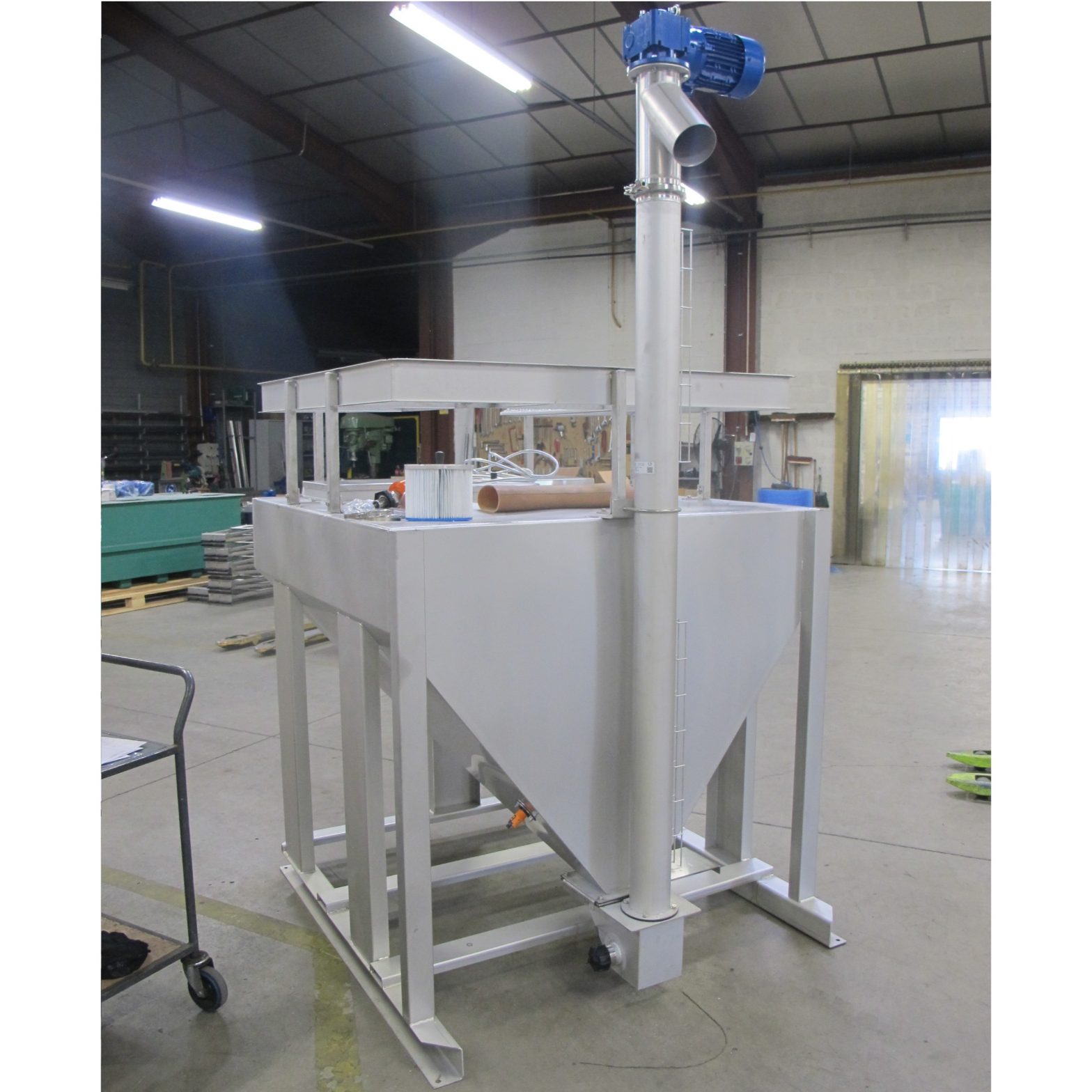

AUTOLIFT

The Autolift is essential for automatic polymer preparation at high flow rates it allows to empty large volumes of powder in one go.

Flocculant is stored in the lower (AUTOLIFT) hopper that feeds the screw conveyor to carry the product up. Once the product is in the screw conveyor, it is carried to an outlet that is angled 45° downwards and connected by a flexible collar to the upper hopper (on the AUTOFLOC).
CATALOG PAGE

The wall pass agitator

AGITATEURS PASSE-PAROIS-3
1 mars 2022
The geometry of some tanks does not allow the installation of pendulum agitators, so there is a different system that solves this problem Fixed to the outside of the tank by a flange, the wall pass agitator makes it possible to agitate horizontally at the bottom of the tank
show more

The autolift

autolift
1 octobre 2021

For polymer preparation stations or any type of reagent, the powder consumption can be very high, so it is not possible to consider manual filling.TMI therefore offers the AUTOLIFT solution which allows the unloading of bags or big-bags in a …

show more

RENTAL

Louez
1 octobre 2020

Not sure what you need? Are you hesitating between a powder or emulsion solution? Would you like to test your stations in real conditions? TMI is proud to present its polymer preparation station rental service: We offer powder or emulsion systems ranging from 300 to 1000 litres with or without pump to suit your installation. Available in mainland France, and ready to……
