Agitators that operate in aggressive environments require special protective coatings both on the moving mixing parts and on the gear motor. Standard stainless steel agitators may not be rugged enough for applications in highly aggressive environments. Highly advanced coatings are required, and must be compatible with the product being processed. We off er a full …
Each mixer consists of a sealed main tank with capacities ranging from a few to several dozen litres, a high-speed agitator for the intimate mixing of effl uents, and a mechanical seal or stuffi ng box. They work by mixing rapidly during the short residence time of the effl uents. This is known as «Flash …
Floating mixers are designed for mixing operations in homogenisation tanks and slurrying in denitrifi cation tanks. When equipped with a variable speed system, they can also be used in fl occulating tanks, drinking water treatment plants, and physical-chemical treatment plants. Floating mixers consist of a low-speed turbine inside a sleeve, attached to the underside of …
As the name suggests, scrapers sweep along the tank fl oor to gather up sludge in the centre for removal. They consist of paddles screw-mounted to the shaft, which is connected to the gear drive by a fl ange and mating fl ange assembly. The scrapers adapt to any shape and diameter of fl at …
Some mixing applications require a coupling box to ensure a seal against fl uids or corrosive vapours, or for mounting on large agitators. Coupling boxes maintain the axial alignment of the through-tank unit. They can include roller bearings, lubricators and rotation sensors. The seal is provided either by a stuffi ng box or a mechanical …

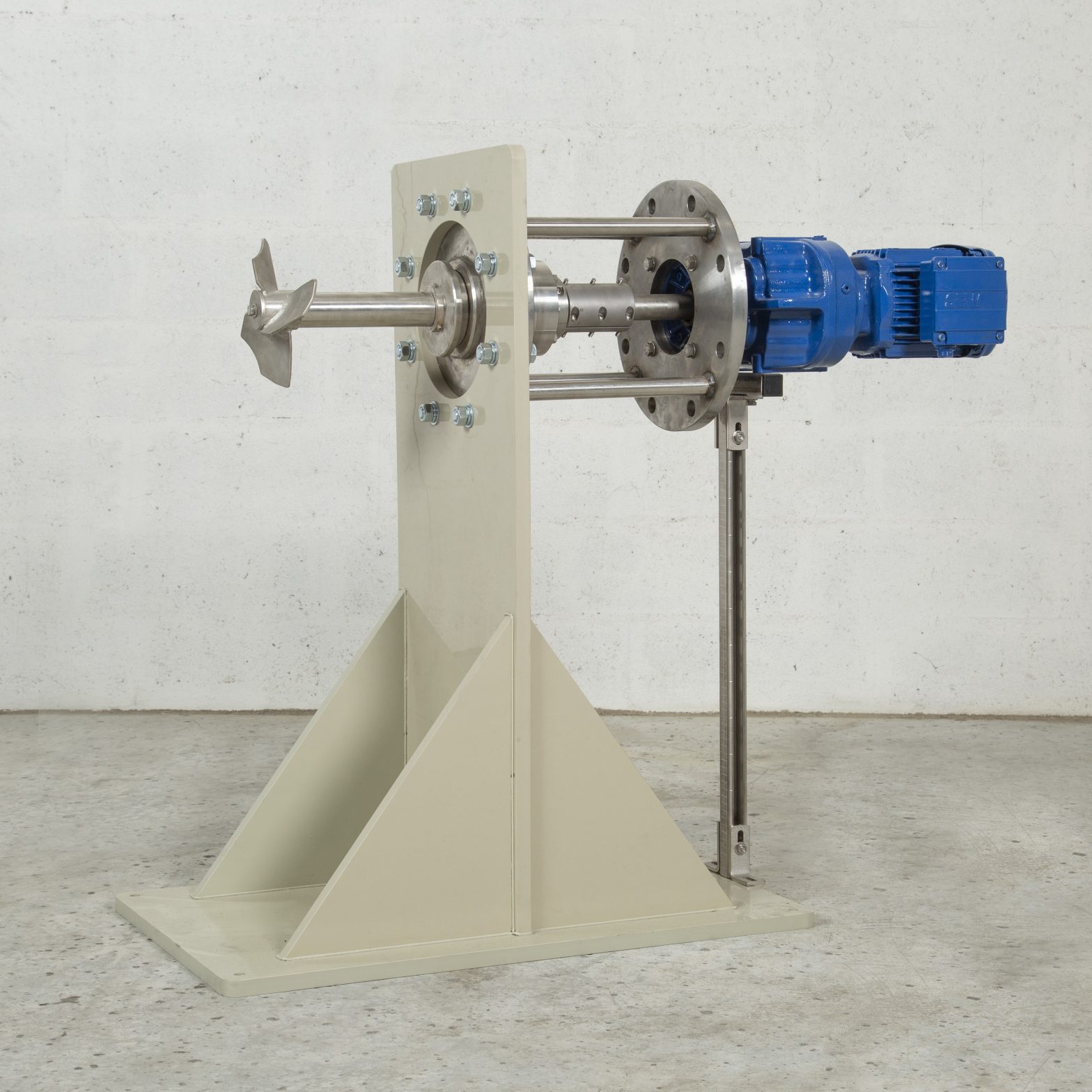

The layout of some tanks prevents the use of top-entry vertical agitators. We have developed a range of side-entry agitators for use with very high cylinder tanks. The MB3 sideentry agitator attaches to the tank wall by a coupling box. It has a shaft-end impeller and is driven by a double sleeve on the gear …
The M3 agitator has a three-part shaft-end impeller and is driven by a double sleeve on the gear shaft. The type of agitator is determined by the required application: reagent preparations, homogenisation, neutralisation and all mixing operations. This type of agitator is mainly used to generate an axial flowIn addition, the M3 fl occulates very …
The MT agitator has a three-part shaft-end turbine and is driven by a double sleeve on the gear shaft. The type of agitator is determined by the required application: reagent preparations, homogenisation, neutralisation and all mixing operations. This type of agitator is mainly used to generate a radial flow; we usually suggest it when a …

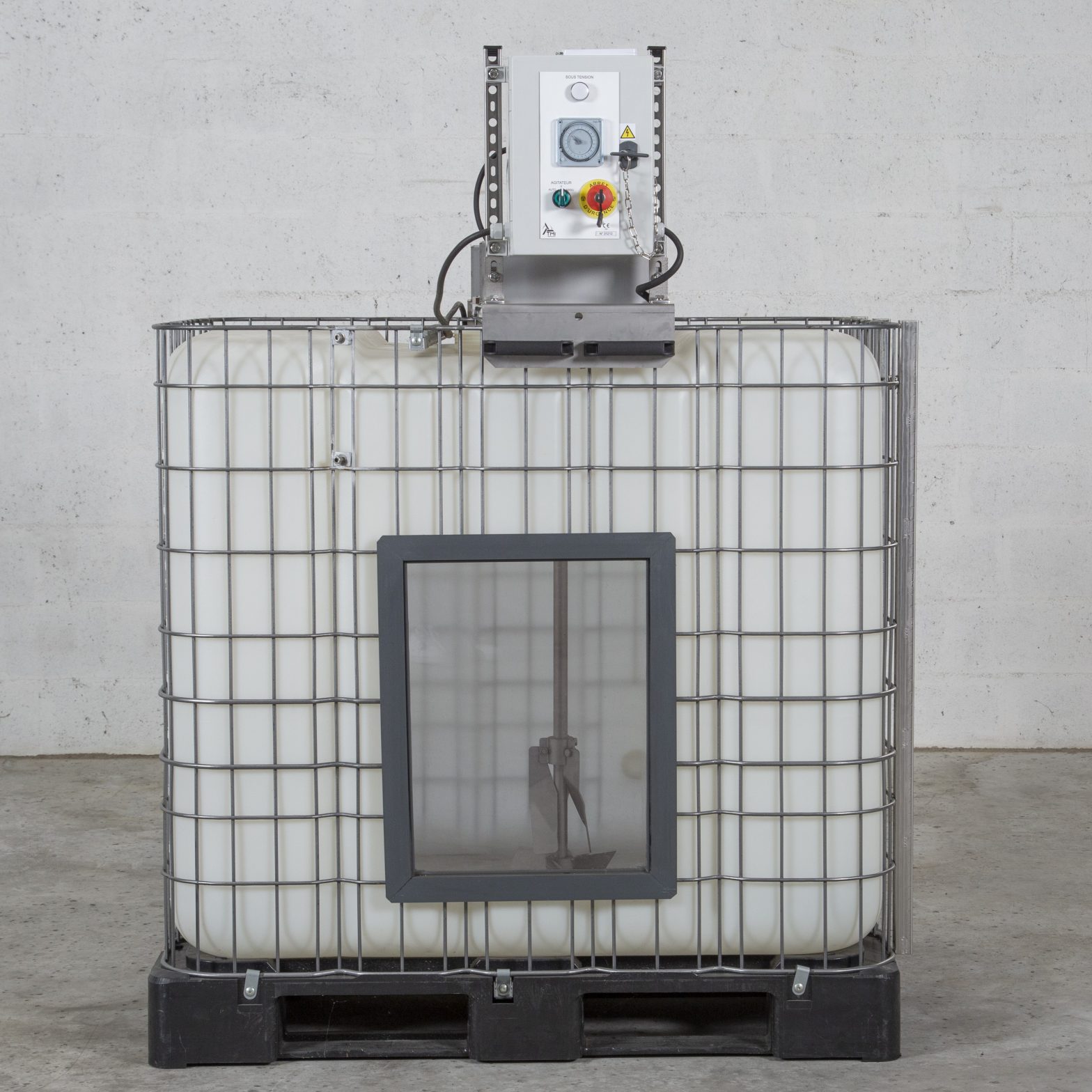

The PPR agitator has a folding turbine screwed to the shaft end and is driven by a socket system mounted directly to the gear shaft. The specially engineered impeller profi le opens out automatically when the shaft begins to turn and folds back when the agitator is switched off . The impeller section fits through …
The PPR-Type agitator has a retractable paddle turbine attached to the shaft end and is driven by a socket system mounted directly to the gear shaft. The impeller profi le is specially engineered to open out automatically when the shaft begins to turn and fold back when the agitator is switched off . The impeller …
